Importing 3D shapes

Updated: June 25, 2019

The following shape file format can be read on XSim.

Readable file format
File formatFile extension
STL (ASCII).stl、.ast、stla
STL (binary).stl、.stlb
Wavefront OBJ.obj
3DS Max.3ds

On "Import Shape" page, select files at "Select files" tab or drag & drop files at "Drop files" to read the shpaes.

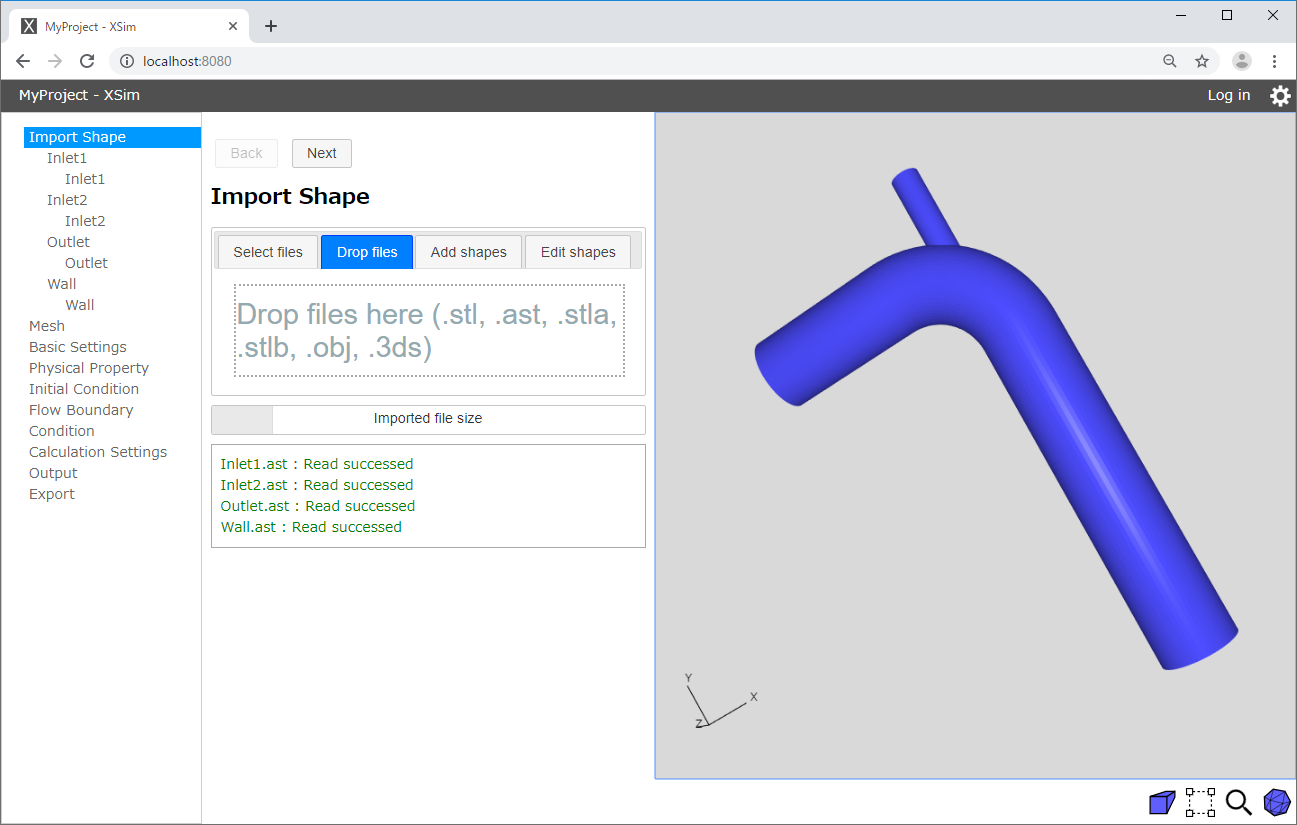

When the shape is read, each shape's area is displayed as tree in the navigation view on left side, and the shapes are displayed in the 3D view on right side.

Read shapes
Read shapes

Currently, the total size of files that can be read is limited to 5 MB.
